S$1,285.00
| Condition | New — Surplus Stock |
|---|---|
| Manufacturer status | In production |
| Product type | AS-Interface ClassicLine module |
| Analogue outputs | 4; connection of 2-wire actuators |
| Analogue current output | 0 to 20 mA |
| Resolution | 16 bit; 1 bit = 1 µA |
| Accuracy | 0.5 % |
| Max. load | 600 Ω |
| Operating voltage | 26.5 to 31.6 V DC |
| Additional voltage supply | 24 to 30 V DC (AUX), optional |
| AS-i profile | S-7.3.6 |
| AS-i master profile | M3; M4 |
| Protection | IP 67 |
| Ambient temperature | 0 to 70 °C |
| Type of mounting | AS-i interface to FC/FC-E lower parts |
| Dimensions | 83 x 90 x 44 mm |
| Weight | 224.65 g |
| Pack quantity | 1 pcs. |

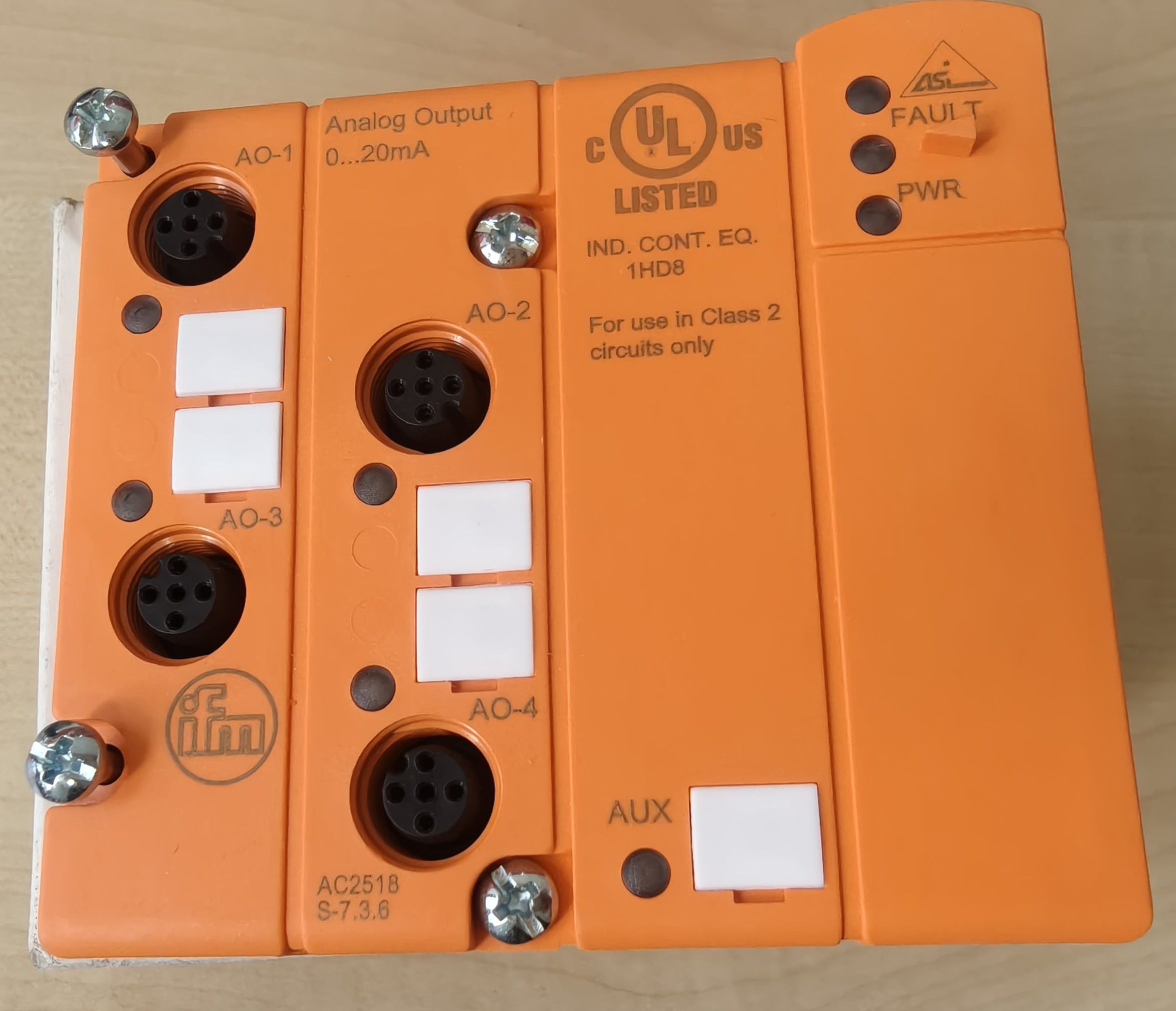

ifm AS-Interface ClassicLine module, 4 analogue outputs. Output 0 to 20 mA, 16-bit resolution, 1 bit = 1 µA, accuracy 0.5 %, maximum load 600 Ω.
Drives four 2-wire actuators from an AS-i line. Operating voltage 26.5 to 31.6 V DC, optional AUX supply 24 to 30 V DC. AS-i profile S-7.3.6, master profile M3 or M4. Mounts to an FC or FC-E lower part. IP 67. 0 to 70 °C.
5 in stock
