S$230.00
| Condition | New — Surplus Stock |
|---|---|
| Manufacturer status | In production |
| Product type | Inductive sensor |
| Thread / length | M12 x 1, L 45 mm |
| Sensing range | 4 mm |
| Electrical design | PNP/NPN |
| Output function | Normally open |
| Operating voltage | 10 to 30 V DC |
| Permanent current rating of switching output | 100 mA |
| Max. voltage drop switching output | 2.5 V |
| Minimum load current | 2 mA |
| Max. leakage current | 0.5 mA |
| Switching frequency | 700 Hz |
| Reverse polarity protection | Yes |
| Protection class | II |
| Pack quantity | 1 pcs. |

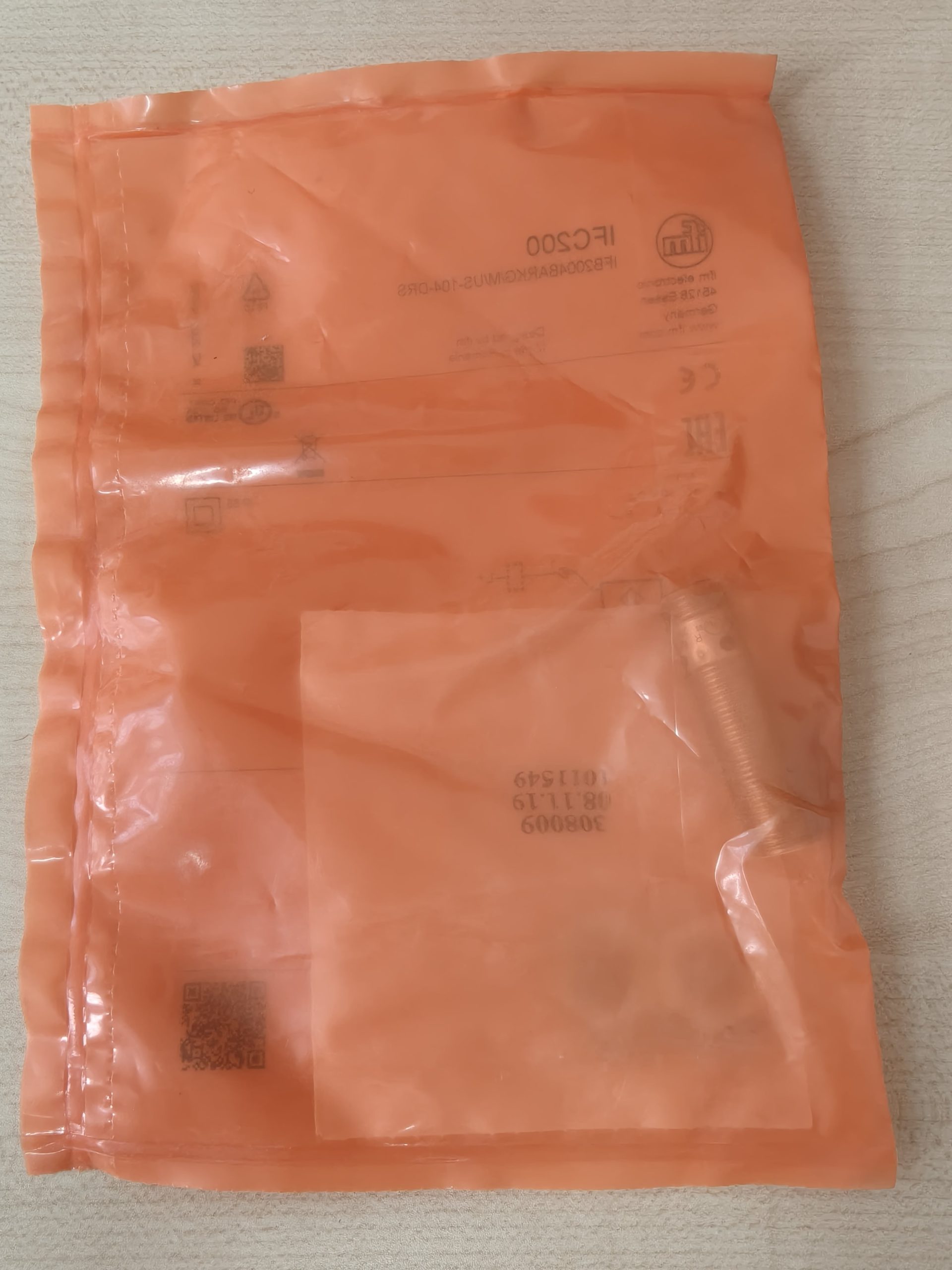

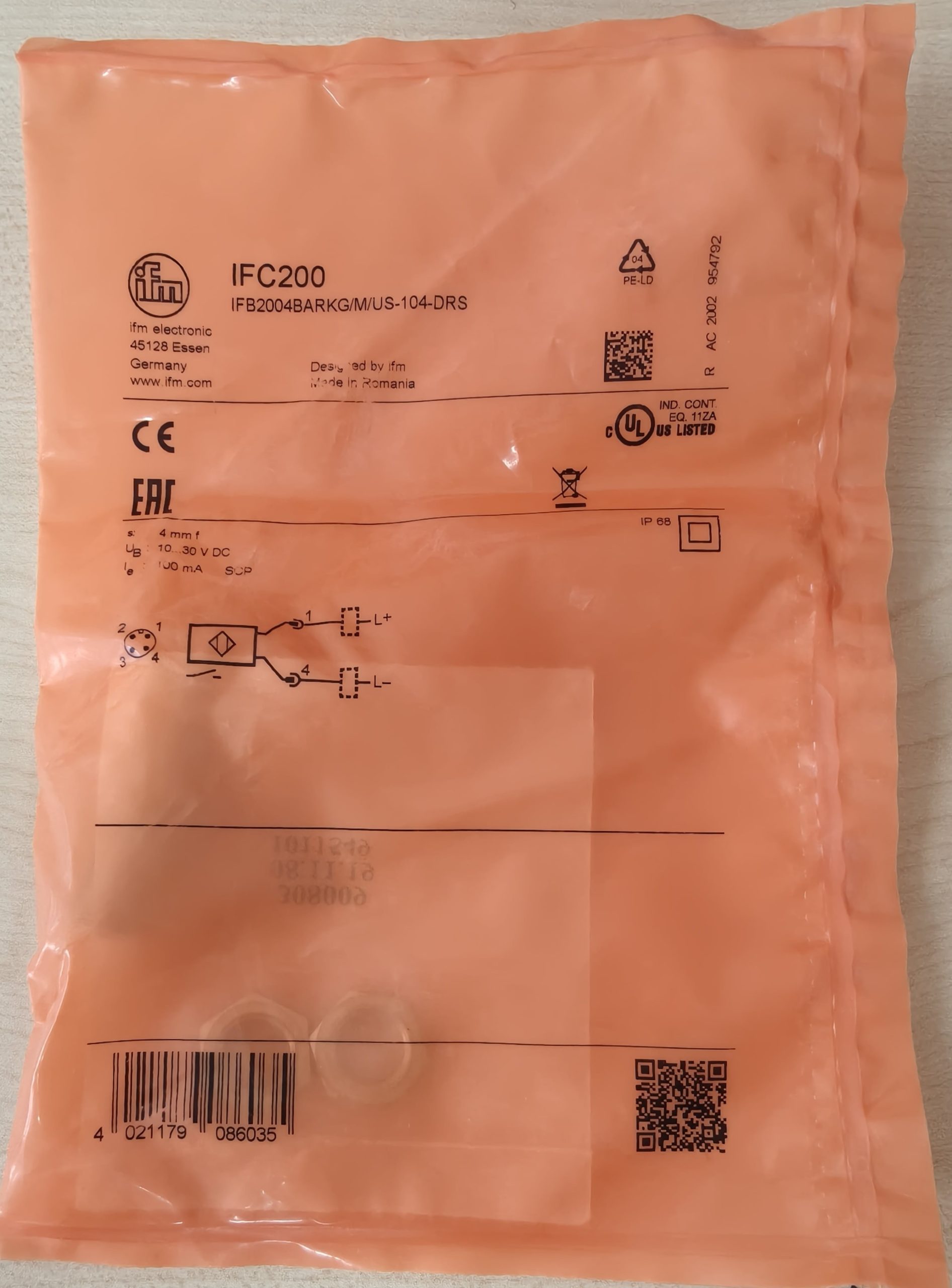

ifm inductive sensor, M12 x 1, length 45 mm. Sensing range 4 mm, PNP or NPN normally open, switching frequency 700 Hz.
General-purpose position and end-position sensing on machines. Operating voltage 10 to 30 V DC. Switching output 100 mA continuous, voltage drop 2.5 V, minimum load current 2 mA, leakage below 0.5 mA. Reverse polarity protection.
49 in stock
