S$100.00
| Condition | New — Surplus Stock |
|---|---|
| Manufacturer status | In production |
| Product family | Alfa Laval LKB-F |
| Product type | Service kit, product wetted parts |
| Fits | Alfa Laval LKB-F butterfly valve |
| Nominal size | ISO 63.5 mm |
| Seal material | EPDM |
| Kit contents | two disc bushings, one seal ring and two flange seal rings |
| Max. product pressure | 1000 kPa (10 bar) |
| Min. product pressure | Full vacuum |
| Temperature range | -10 °C to +140 °C (EPDM); max 95 °C while operating the valve |
| Product wetted steel parts | AISI 304 or AISI 316L |
| Other steel parts | AISI 304 |
| Bushes for valve disc | PVDF |
| Inside surface finish | Ra <= 0.8 µm |

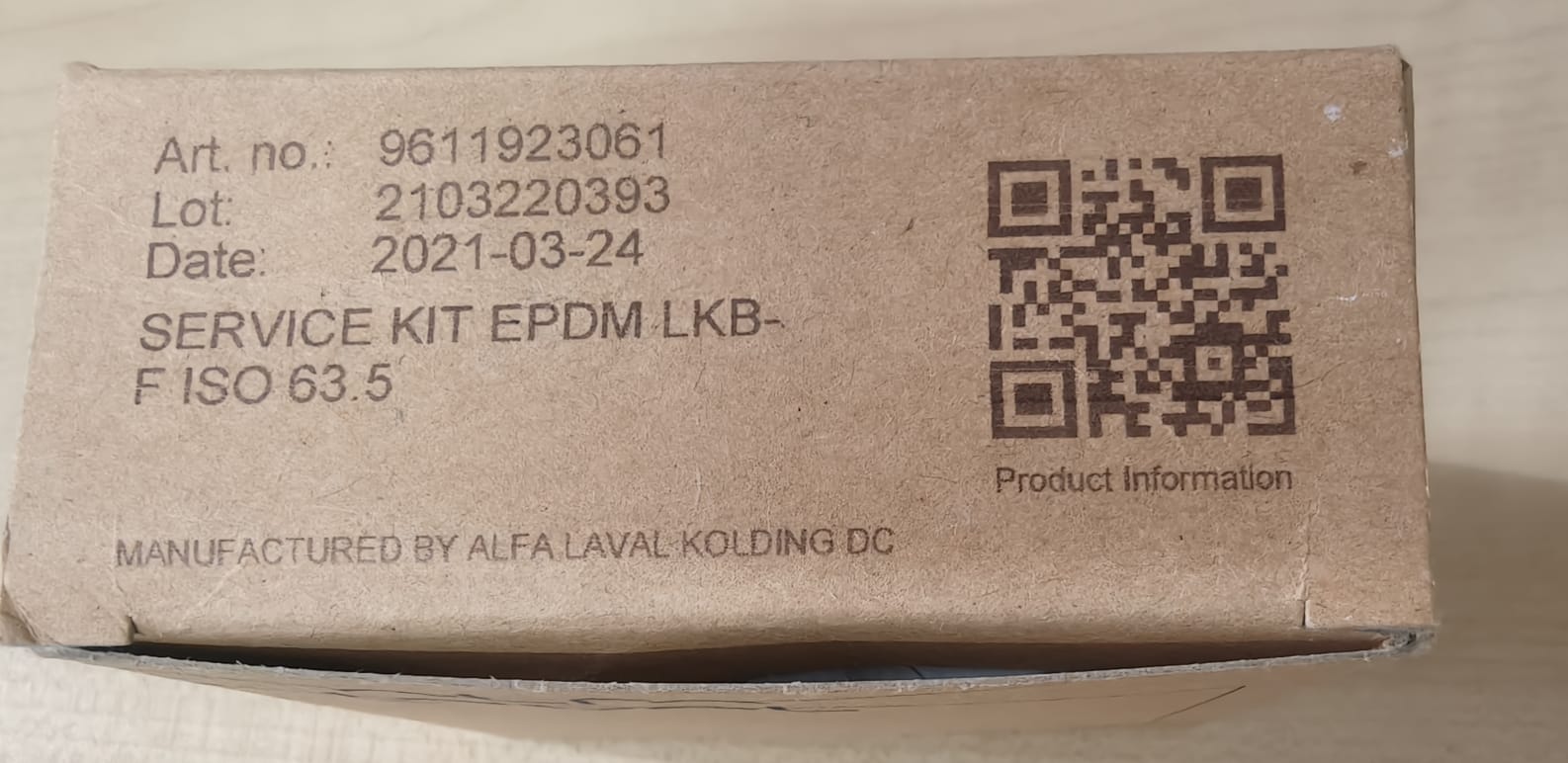

Alfa Laval 9611923061, EPDM service kit for the product wetted parts of the LKB-F butterfly valve, ISO 63.5 mm.
Contains two disc bushings, one seal ring and two flange seal rings. Wear parts for a sanitary butterfly valve rated 10 bar and full vacuum, -10 °C to +140 °C on EPDM — though Alfa Laval limits the valve to 95 °C while it is being operated.
The listing recorded this as ISO 76 mm. Alfa Laval’s own kit table puts 9611923061 in the 63.5 mm column; 9611923062 is the 76 mm kit.
3 in stock
