S$100.00
| Condition | New — Surplus Stock |
|---|---|
| Manufacturer status | In production |
| Product family | Alfa Laval LKC-2 |
| Product type | Service kit, product wetted parts |
| Fits | Alfa Laval LKC-2 non-return valve and LKC UltraPure |
| Nominal size | DN/OD 38 mm / DN32 and DN40 |
| Seal material | EPDM |
| Kit contents | Seal ring, O-ring, spring |
| Max. product pressure | 1000 kPa (10 bar) |
| Min. product pressure | Full vacuum |
| Temperature range | -10 °C to +140 °C (EPDM) |
| Product wetted steel parts | 1.4301 (304) / 1.4404 (316L) |
| Internal surface finish | Ra < 0.8 µm |
| External surface finish | Bright (machined), Ra 1.6 |
| Opening differential pressure, vertical pipe | Approx. 6 kPa (0.06 bar) |

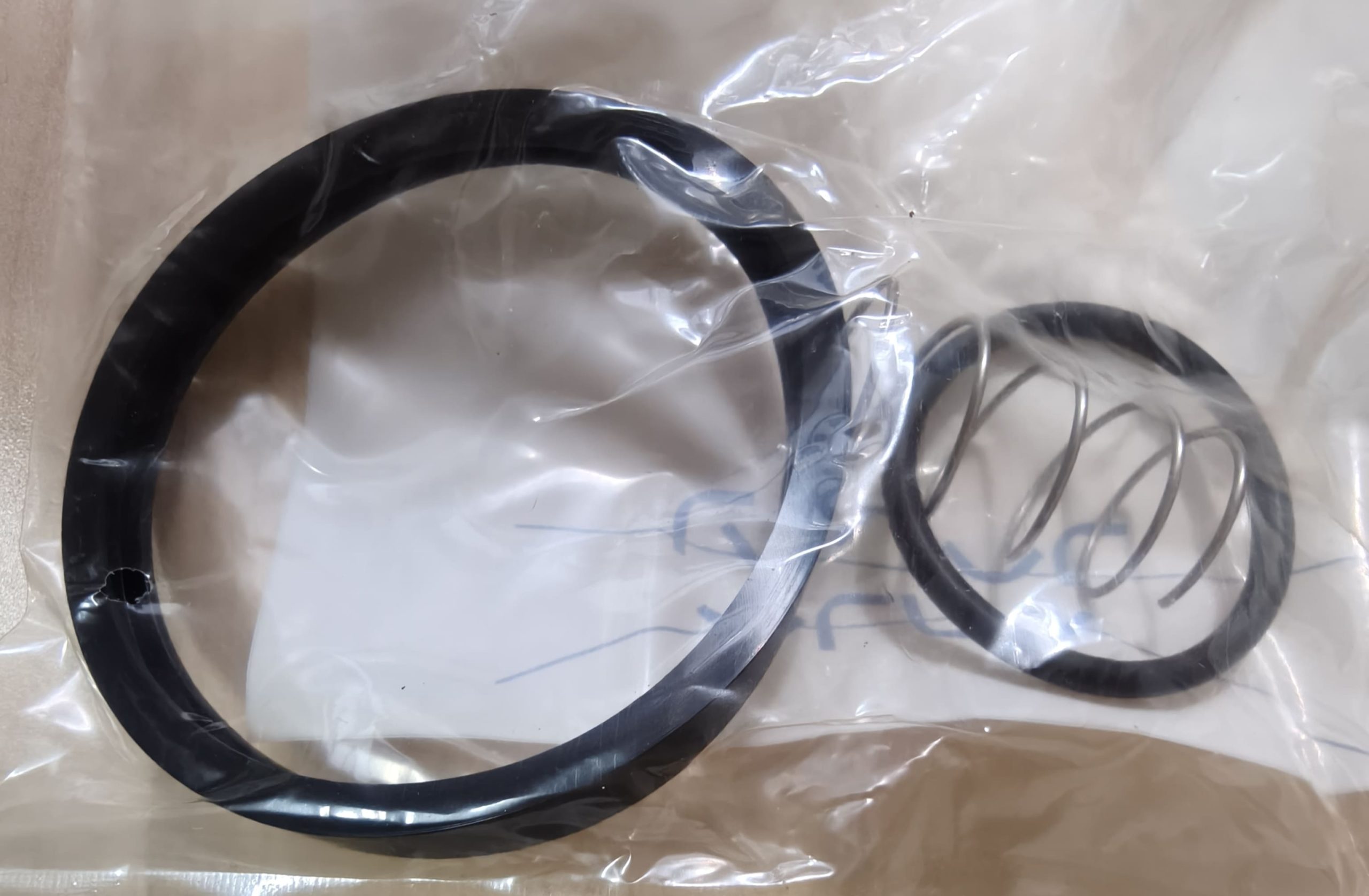

Alfa Laval 9611924006, EPDM service kit for the product wetted parts of the LKC-2 non-return valve, DN/OD 38 mm / DN32 and DN40.
Contains the seal ring, the O-ring and the spring. The LKC-2 is a hygienic non-return valve; on a vertical pipe it needs about 0.06 bar differential pressure to open.
1 in stock
